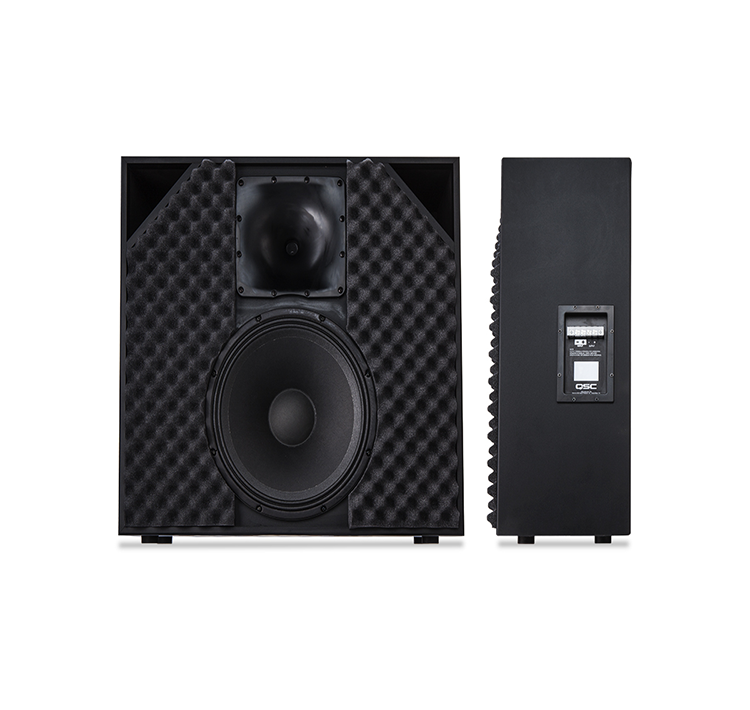

SC-1150 Screen Chanel

Liên hệ

Features: 2-Way Small Room Screen Channel Loudspeaker, Passive

  • Optimized design for smaller cinemas—up to 45 ft (14 m) in length
  • Single enclosure, two-way screen channel loudspeaker
  • Requires less than 12 inches (305 mm) behind screen
  • Passive crossover requires only one amplifier channel
  • 90° Axisymmetric horn
  • 15" (380 mm) woofer with 3" (76 mm) voice coil
  • 1.75" (44 mm) voice coil HF compression driver
  • Screw-type barrier-strip connectors

SPECIFICATIONS

SC-1150

Rated Coverage Angle (-6 dB)

90° Axisymmetric

Frequency Range (-10 dB)

43 Hz to 19 kHz

Rated Noise Power 2

400 W

Sensitivity 3

96 dB

Maximum Continuous SPL 4

122 dB

Maximum Peak SPL 4

128 dB

Rated Impedance

Maximum Recommended Amplifier Power

600 W

Transducers

LF: 15" (380 mm) woofer, 3" voice coil HF: Compression driver with 1.75" (44 mm) voice coil

Enclosure

MDF, non-reflective vinyl wrap

Dimensions (H×W×D) inches

27.2 × 30 × 11.7

Dimensions (H×W×D) mm

690 × 762 × 297

Net Weight

71 lb (32.3 kg)
