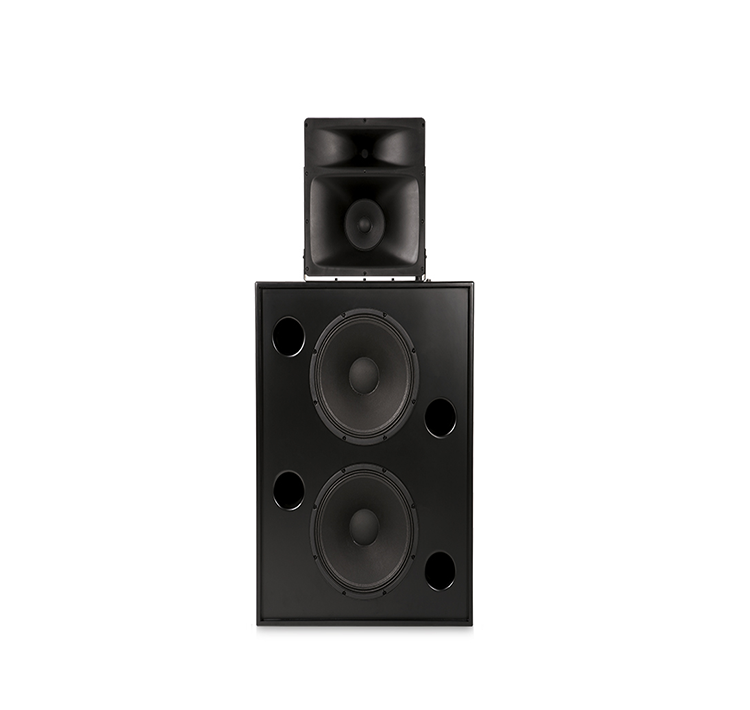

SC-2150 Screen Channel

Liên hệ

Features

SC-2150, 3-Way Screen Channel Loudspeaker, Passive or Bi-amp

  • Optimized design for smaller cinemas - up to 55 ft (16.6 m) in length
  • 3-way selectable, bi-amplified or full passive screen channel system
  • Heavily braced, MDF low-frequency enclosure for extended bass response
  • 6.5" horn loaded midrange driver provides highly articulate dialogue
  • Very shallow 14.5" (368 mm) depth reduces space required behind the screen
  • Advanced crossover circuitry protects the HF and MF drivers from over- powering and excessive low-frequency program materia

SPECIFICATIONS

SC-2150

Nominal Coverage (-6 dB)

90° horizontal x 40° vertical

Frequency Response1 (-6 dB)

38 Hz- 20 kHz

Frequency Range1 (-10 dB)

32 Hz- 20 kHz

Crossover Frequencies (passive)

500 Hz & 2200 Hz

Crossover Frequencies (bi-amp)

500 Hz active, 24 dB /octave LF to mid-high, 2200 Hz passive



LF Enclosure

Mid-High System

Impedance

4 ohms

8 ohms

Sensitivity 1 watt/1 meter, half space

100 dB

102 dB

Maximum Input Power

500 W continuous 4

80 W continuous 5

Maximum Recommended
Amplifier Power

1000 W continuous

320 W continuous

Recommended Processing

Subsonic filter below 30 Hz,
>18 dB per octave

4th-order LR crossover at 500 Hz
via QSC DCM, DCP or QSControl.net™

Connectors

Barrier strip screw terminals accept up to #10 AWG stranded wire

Factory installed NL4 plug for connection to input terminal plate

Transducers

Two 15" (381 mm) high efficiency, extended bass woofers featuring 3" voice coils

6.5" high efficiency mid range, 1" (38 mm) exit, 1.4" (35.5 mm) diaphragm compression driver

Enclosure

Ported enclosure with symmetrical port design, tuned to 40 Hz, constructed of MDF and heavily braced

Tilt/Pan Bracket
-20 to +10° vertical tilt
± 15° horizontal pan

Dimensions (HWD) inches

38.3 x 30 x 14.5

17.3 x 16.3 x 6.8

Dimensions (HWD) mm

762 x 972 x 368

414 x 440 x 173

Net Weight

107 lb / 48.5 kg

10 lb / 4.5 kg

Shipping Weight

121 lb / 54.9 kg

12 lb / 5.4 kg

System Net Weight

117 lb / 53.1 kg

System Shipping Weight

133 lb / 60.3 kg

Baffle Cut-Out

30.5" x 56.1" (775 mm x 1425 mm) contoured to the perimeter of MF - HF horns
