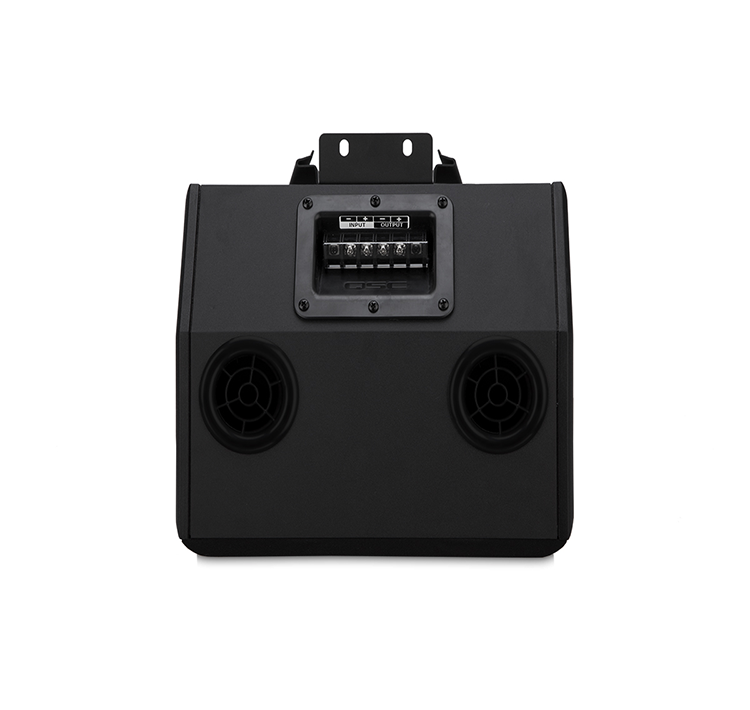

SR-1030 Surround Loudspeaker

High performance for large cinemas
Directivity Matched Transition™ provides balanced sound between woofer and horn
Axisymmetric horn
10" (254 mm) woofer with 2.5" (63 mm) voice coil
1.75" (44 mm) titanium diaphragm compression driver
Pre-installed speaker-side mounting hardware for fast, easy, and secure installation. Use with QM-SW or QM-BW for wall mounting (sold separately).
Very high-power handling capability meets the demands of D-Cinema soundtrack reproduction

SPECIFICATIONS	SR-1030
Frequency Range ¹ (-10 dB, half space)	56 Hz to 20 kHz
Nominal Coverage	90° axisymmetric

Maximum Rated SPL ⁴ Calculated Peak at rated power Calculated Continuous	127.5 dB 121.5 dB
Rated Impedance	8 ohms
Rated Noise Power ² Recommended Amplifier Power	400 watts continuous 800 watts into 8 ohms
Sensitivity 2.83 V at 1 m, free-field³	95.5 dB
Crossover Frequency	1.8 kHz
Recommended Processing	Subsonic filter at 50 Hz as provided by QSC DCA amplifiers
Connectors	Barrier strip screw terminals accept up to #10 AWG stranded wire
Transducers	1.75" (44 mm) titanium diaphragm compression driver 10" (254 mm) long throw low-frequency transducer with 2.5" (63 mm) voice coil
Enclosure	MDF, baffle angle is 15° downward
Dimensions (HWD) inches	19.5 × 15.8 × 10.2
Dimensions (HWD) mm	495 x 401 x 259
Weight	36.5 lb (16.5 kg)
