SPECIFICATIONS

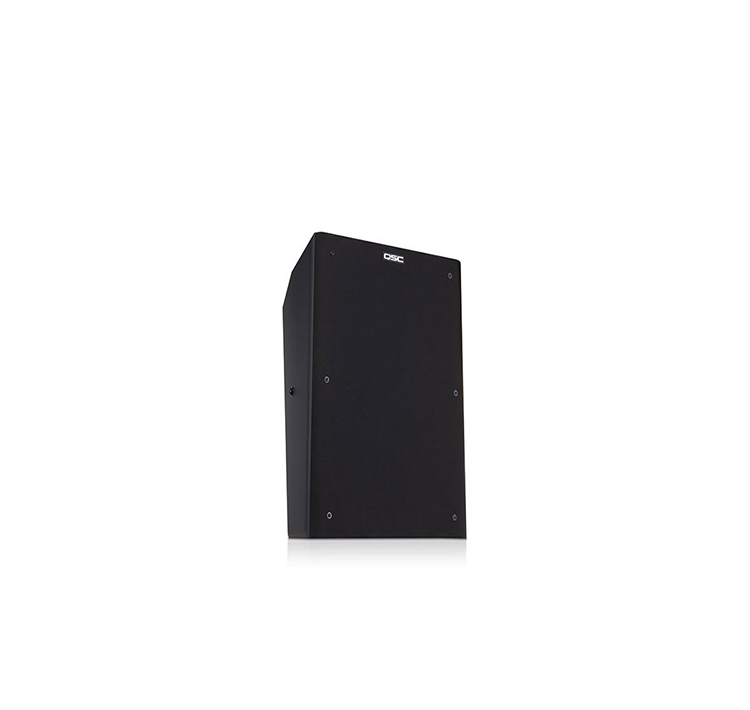

SR-1290
Frequency Range 1 (-10dB, Half space)
50 Hz to 20 kHz
Rated Coverage Angle (-6 dB)
90° conical (averaged from 1 kHz to 8 kHz)
Maximum Rated SPL 4 Calculated Peak at rated power Calculated Continuous
128 dB 122 dB
Rated Impedance
4 ohms
Rated Noise Power 2 Recommended Amplifier Power
400 watts continuous 800 watts
Sensitivity 1 W at 1 m, free-field 3
96 dB
Transducers
12” (305 mm) LF driver with coaxially-mounted 1.75” (44 mm) voice coil HF compression driver
Enclosure
15 mm Baltic birch plywood, non-reflective black vinyl
Dimensions (HWD) inches
20.1 x 15.75 x 12.1
Dimensions (HWD) mm
511 x 400 x 308
Weight
36.5 lb (16.5 kg)
Features: Surround Loudspeaker
SPECIFICATIONS
SR-1290
Frequency Range 1
(-10dB, Half space)
50 Hz to 20 kHz
Rated Coverage Angle (-6 dB)
90° conical (averaged from 1 kHz to 8 kHz)
Maximum Rated SPL 4
Calculated Peak at rated power
Calculated Continuous
128 dB
122 dB
Rated Impedance
4 ohms
Rated Noise Power 2
Recommended Amplifier Power
400 watts continuous
800 watts
Sensitivity 1 W at 1 m, free-field 3
96 dB
Transducers
12” (305 mm) LF driver with coaxially-mounted
1.75” (44 mm) voice coil HF compression driver
Enclosure
15 mm Baltic birch plywood, non-reflective black vinyl
Dimensions (HWD) inches
20.1 x 15.75 x 12.1
Dimensions (HWD) mm
511 x 400 x 308
Weight
36.5 lb (16.5 kg)
