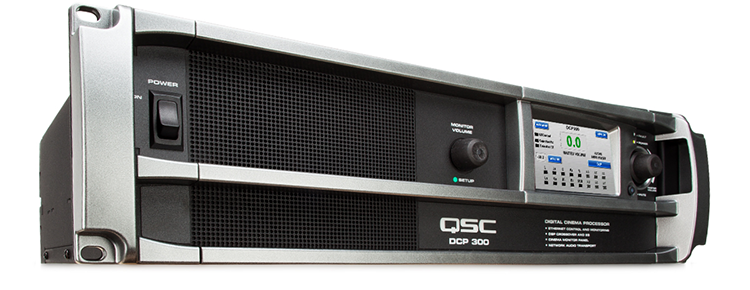

DCP 300 Processor

Liên hệ

Features: QSC Digital Cinema Processor

  • Digital input for up to 16 channels of audio
  • Networked audio I/O via CobraNet™
  • Network control and monitoring via SNMP
  • Serial automation control via RS-232
  • Analog Inputs for film processors, non-sync and mic/line
  • Master volume and full 1/3 octave graphic EQ on all channels
  • Booth monitor with touch screen control for easy operation
  • Digital loudspeaker crossovers
  • Three or five screen channels - passive and 2-, 3-, or 4-way crossovers
  • Compatible with all existing DCA amplifiers- thousands of DCA equipped screens are ready for full network monitoring and control
  • Dual power supplies with load sharing for seamless operation in the event of failure
  • SD memory card for quick unit swap - restores all settings
  • Multiple bypass modes routes audio around failed components to insure that the show will go on
  • DCP Manager and DCPNet PC-based application for set-up, control and monitoring
  • DCP Connect mobile app for iPhone and Android provide control and monitoring capabilities via smart phone
  • DSP presets for DCS speakers for great "out of box" performance and reduced set-up time
  • Crossovers support active 2-, 3-, and 4-way systems as well as passive systems
  • Easily integrates with existing film processors for dual film/digital projection systems
  • CobraNet offers digital non-sync routing and future expansion capability
  • Continued development of software and firmware will add new capabilities to the existing hardware with easy firmware updates
  • The DCP 300 is designed expressly for the needs of D-Cinema sound systems

SPECIFICATIONS

DCP 300 Digital Cinema Processor

Front Panel Controls

Power switch

Rocker switch

Mute control

Push button

Auditorium fader

Rotary encoder

Monitor volume/parameter adjust

Rotary encoder

Menu-driven LCD

Touch control LCD

Rear Panel Connectors

D-Cinema input group 1

DB-25: AES3/EBU channels 1-8

D-Cinema input group 2

DB-25: AES3/EBU channels 9-16

Main analog input

DB-25: Analog audio channels 1-8

Extended surround input

DB-25: Surround and Le/Re channels

Universal Mic/Line input

XLR: Mic (+ phantom pwr) or line level

S/PDIF input

RCA: Stereo digital audio interface and Lt/Rt Matrix

RCA (L/R) inputs

RCA (two): Stereo Left and Right and Lt/Rt Matrix

Dataport outputs

HD-15 (14): QSC amplifier interface

Automation inputs

6-pin Euro-style (two) TTL compatible dry contact closure

Serial Control

DB-9 RS-232 serial interface

Logic output

4-pin Euro-style (two) outbound control

Relay outputs

6-pin Euro-style (two) outbound control

USB port

Config and management interface

QSControl and SNMP RJ45

10/100 Mbps network management

CobraNet RJ45s

100 Mbps primary/backup network audio

SD card receptacle

Configuration memory card (1 GB min)

HI and VI Impaired Outputs

Output stage type

Single ended (balanced Z)

Output impedance

50 ohms

Nominal output level

-11.8 dBu (200 mVrms)

Loading requirements

RMIN = 2 kΩ, CMAX = 4 nF

Audio Network

Protocol

CobraNet version 2 protocol

Data rate

100 Mbps (Fast Ethernet)

Ports

1 primary, 1 backup (auto-failover)

Connection requirements

Cat-5 UTP cable or better (100 m maximum length), direct connection to wired network switch ports only, dedicated LAN or VLAN

QSControl Network

Protocol

Standard TCP/IP implementation over Ethernet or Fast Ethernet

Data rate

10/100 Mbps

Connection requirements

Cat-5 UTP cable or better (100 m maximum length), direct connection to wired network switch ports only, dedicated LAN or VLAN



Line voltage requirements

100–240 VAC, 50/60 Hz

Dimensions (H/W/D)

5.25” × 19” × 15.2” (133 mm × 483 mm × 386 mm)

Weight

16.6 lb (7.5 kg)
